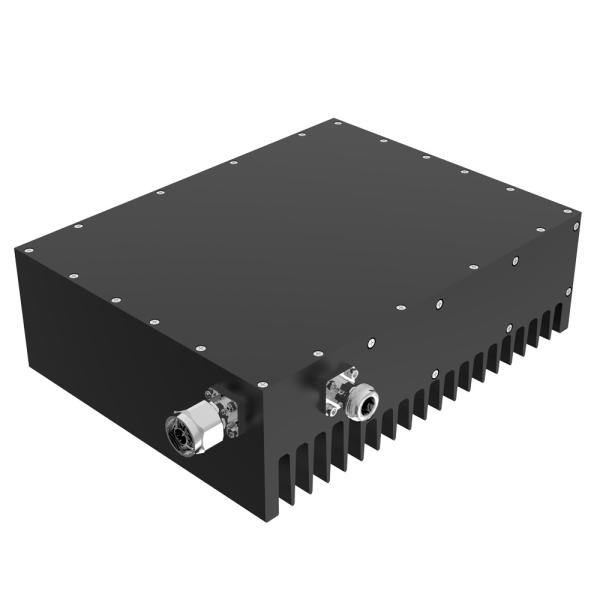

    Outdoor Switched Fixed Rf Power Attenuator 100W ROHS

    Ask Lasest Price
    Brand Name : Vinncom
    Model Number : VN-LPAT-0727-100W-ONx
    Certification : ROHS ISO9000
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, T/T
    Supply Ability : 100pcs per day
    • Product Details
    • Company Profile

    Outdoor Switched Fixed Rf Power Attenuator 100W ROHS


    698-2700MHz 100 W N Male To N Female Low PIM -155dbc 160dbc RF Attenuator 5~40dB RF Coaxial Attenuators


    • Wide band frequency
    • Low PIM
    • High attenuation accuracy

    Part NumberVN-LPAT-0727-100W-ONx
    Operating Frequency ( MHz )698-2700
    Impedance ( Ohm )50
    VSWR≤1.25
    Attenuation (dB)5 ± 0.86 ± 0.87 ± 0.810 ± 0.815 ± 120 ± 130 ± 1.240 ± 1.5
    IM3 (dBc @ 2×43dBm)-155 / -163
    ApplicationIndoor & Outdoor
    Degree of ProtectionIP65
    Operating Temperature ( ℃ )-40 ~ + 80
    InterfaceN Male to N Female
    Handling Power (Watt, max)100
    Peak Power (Watt, max)800
    Dimension (mm)220 × 170 × 68 (excludes connector)
    ROHS ComplianceYes

    RF attenuators usually can be used to reduce the power of the signal within many RF circuit designs and RF systems. These RF attenuators can be fixed, switched,surface mounted or even continuously variable.

    Vinncom has many types of RF attenuators with different frequency range. Vinncom also can supply attenuators with good PIM value(-160 dbc@43dbm*2) in some RF syetems.
