    DC 18GHz 100W 60dB High Power Attenuator RF Components

    Ask Lasest Price
    Brand Name : Vinncom
    Model Number : VN-AT-18G-100W-SMA
    Certification : RoHS/ISO9000
    Price : negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 300pcs per day
    Delivery Time : depends on quantity
    • Product Details
    • Company Profile

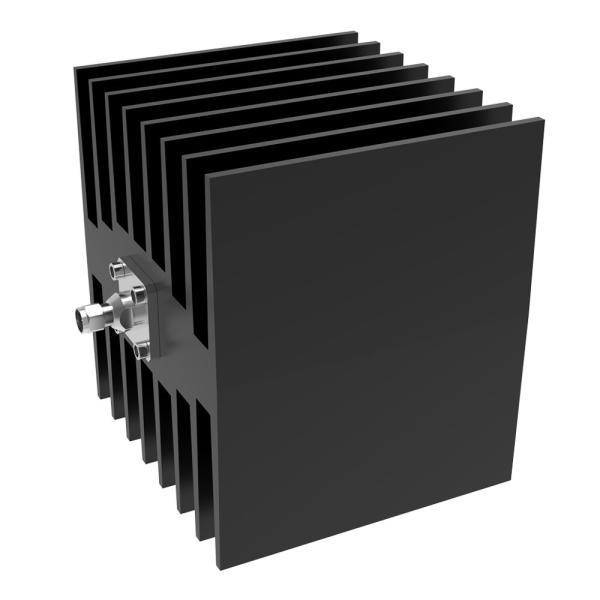

    DC 18GHz 100W 60dB High Power Attenuator RF Components

    DC-18GHz 100W SMA Male-SMA Female RF Components 60dB Attenuator


    • Wide working frequency range
    • Low standing wave
    • High attenuation accuracy
    Part NumberVN-AT-18G-100W-SMA
    Operating FrequencyDC-18 GHZ
    Impedance ( Ohm )50
    ApplicationIndoor & Outdoor
    Degree of ProtectionIP65
    Handling Power (Watt, max)100W
    InterfaceSMA Male - SMA Female
    Operating Temperature ( ℃ )-40 ~ + 80
    Attenuation(dB)36~1011~2021~3031~4041~60VSWR
    DC-4GHz±0.4±0.7±0.7±0.8±0.8±1.0≤1.20
    DC-8GHz±0.5±0.8±0.8±0.9±0.9±1.1≤1.25
    DC-12.4GHz±0.6±0.9±0.9±1.0±1.1±1.2≤1.35
    DC-18GHz±0.8±1.5±1.5±1.3±1.4±1.4

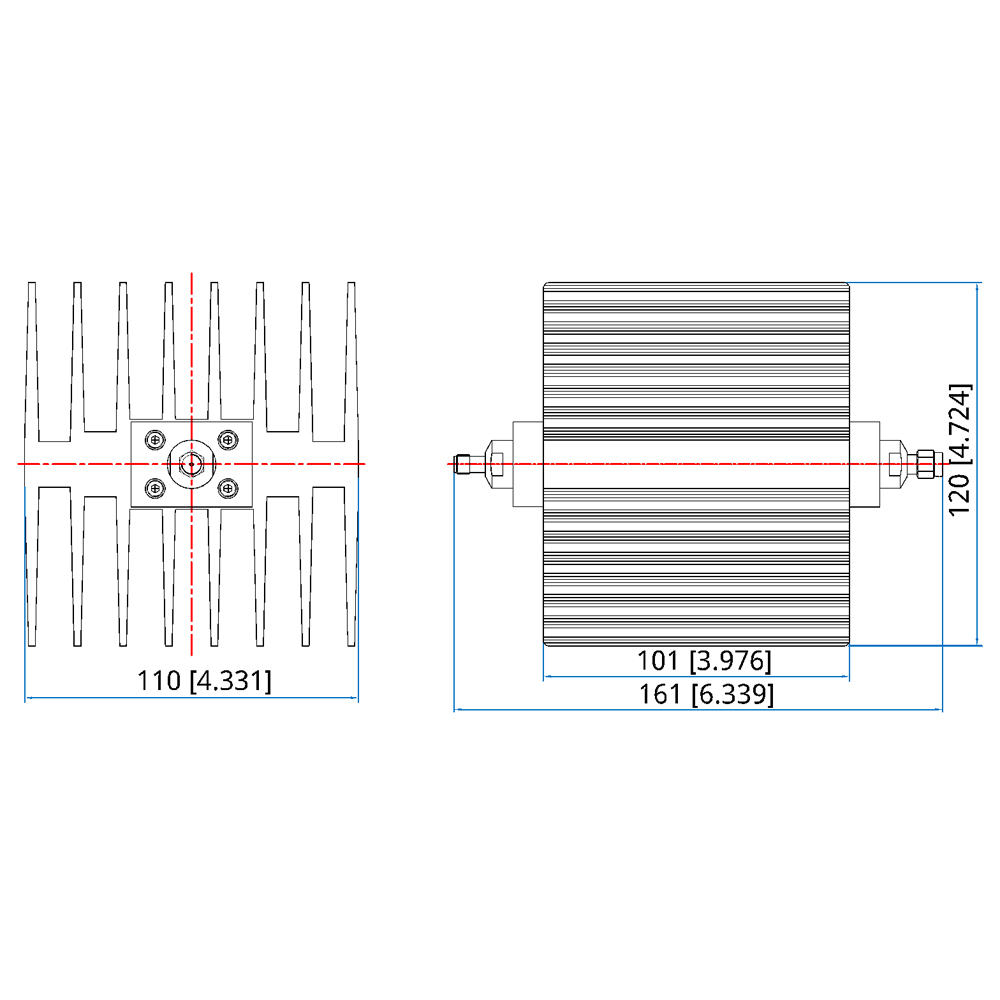

    Dimension (mm), excl connector)120x110x101mm
    Net Weight (g)/
    Packing Dimensions (mm,L×W×H)/
    Packing Carton Size (mm,L×W×H)/
    ROHS ComplianceYes
    Application
    The coaxial attenuator can control the output power of the local oscillator in the microwave superheterodyne receiver to obtain the best noise figure and frequency conversion loss to achieve the best reception effect. It can also be used as a decoupling element between the oscillator and the load. Currently widely used in mobile communications, aviation, radar, scientific research, radio and television and other fields.
    Company Profile
    Packing & Delivery
    FAQ
    Q1: Are you a factory or a trade company? A1: We are factory specialised in kinds of Microwave & mmWave components.
    Q2: Where are you located? A2: We are in HeFei city, near Shanghai.
    Q3: How many years have you engaged in this business? A3: We have engaged in this business more than 18 years, and we are professional in Microwave components.
    Q4: How long is your delivery time(lead time)? A4: Within 5 days if the product is in stock, otherwise will take about 20days, after receiving the deposit.
    Q5: What’s the MOQ (Minimum Order Quantity)? A5: Generally speaking 10pcs, but it depends on models.
    Q6: It is all right to add our logo on your products? A7: Yes, we can do printing logo.
    Q7: Why choose us? A8: As a professional supplier for microwave components more than 10 years, we win our clients with good quality and competitive price. QC inspection before shipping, strong quality control process.
