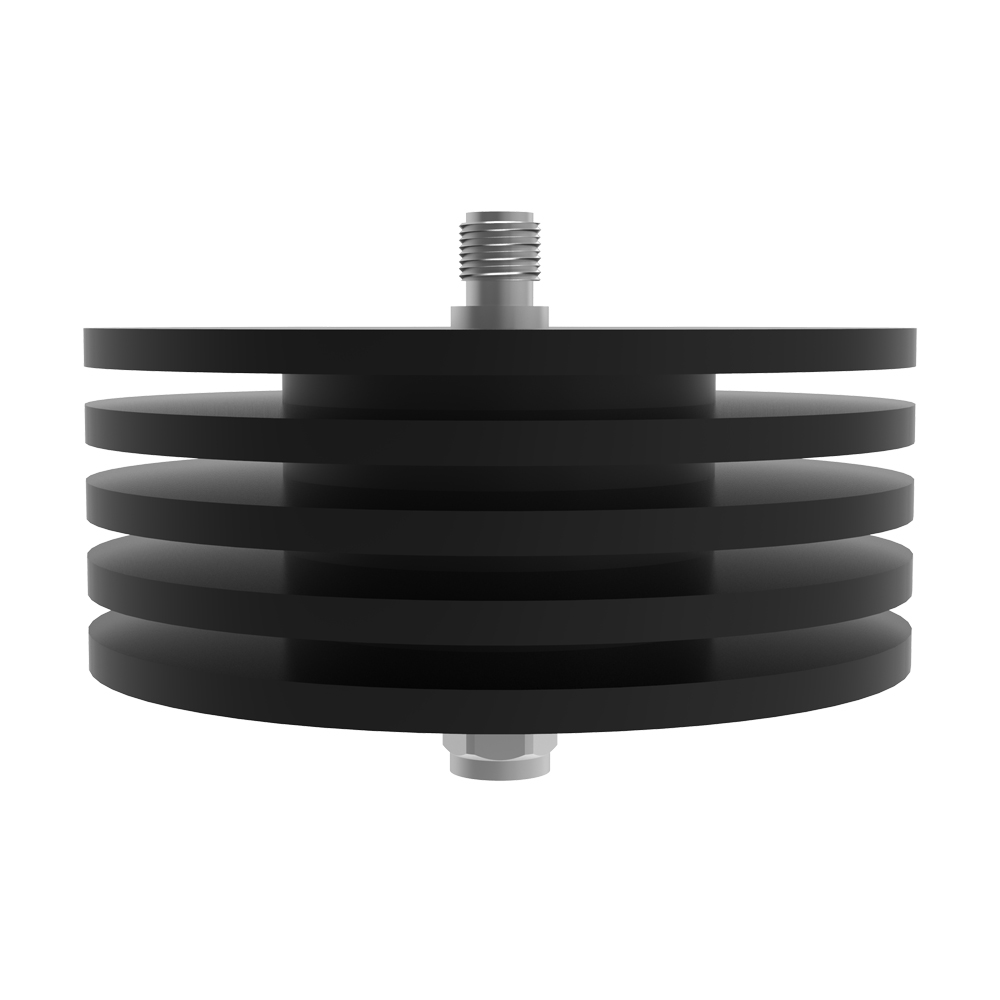

    25W Male SMA Power Programmable RF Attenuator 20dB DC 26GHz

    Ask Lasest Price
    Brand Name : Vinncom
    Model Number : VN-AT-26G-25W-SMA
    Certification : ISO9000 RoHS
    Price : negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 300pcs per day
    Delivery Time : depends on quantity
    • Product Details
    • Company Profile

    25W Male SMA Power Programmable RF Attenuator 20dB DC 26GHz

    25W Male SMA Power Programmable RF Attenuator 20dB DC 26GHz


    • Low standing wave
    • High attenuation accuracy
    • High indicator stability

    Part NumberVN-AT-26G-25W-SMA
    Operating FrequencyDC-26 GHZ
    Impedance ( Ohm )50
    ApplicationIndoor & Outdoor
    Degree of ProtectionIP65
    Handling Power (Watt, max)25W
    InterfaceSMA Male - SMA Female
    Operating Temperature ( ℃ )-40 ~ + 80
    Attenuation(dB)10203040VSWR
    DC~12.4±0.5±0.8±0.8±0.81.25
    DC~18±1.0±1.0±1.0±1.01.30
    DC~26.5±1.2±1.2±1.2±1.21.35
    Dimension (mm), include connector)Φ63*47mm
    Net Weight (g)/
    Packing Dimensions (mm,L×W×H)/
    Packing Carton Size (mm,L×W×H)/
    ROHS ComplianceYes
