    550-6000MHz 4.3-10 Female Directional Coupler

    Ask Lasest Price
    Brand Name : Vinncom
    Model Number : VN-DC-05560-OPx-xxx
    Certification : ROHS ISO9000
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 1000pcs per day
    • Product Details
    • Company Profile

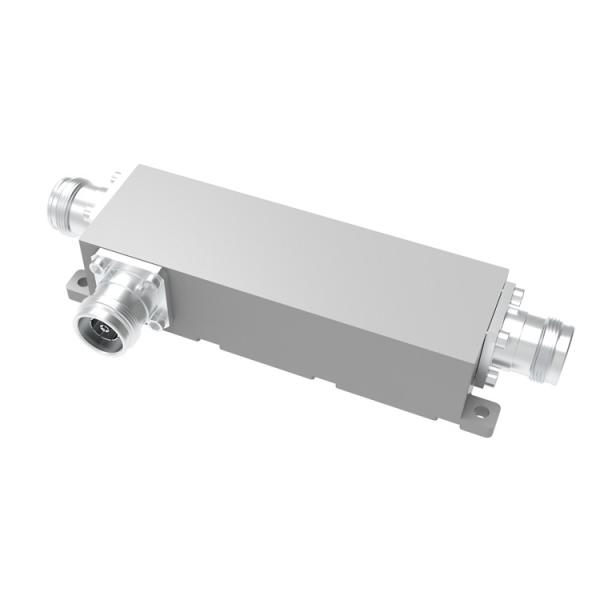

    550-6000MHz 4.3-10 Female Directional Coupler

    550-6000MHz 4.3-10 Female Directional Coupler


    • For DAS IBS Application
    • Coupling Degree: Can Be Customized
    • Installation: Screw Or With Brakets

    VN-DC-05560-OPx-xxx.pdf

    Part NumberVN-DC-05560-OPx-xxx
    Operating Frequency ( MHz )550-6000
    Impedance ( Ohm )50
    VSWR≤1.30
    Coupling (dB)5 ± 1.46 ± 1.47 ± 1.48 ± 1.410 ± 1.615 ± 1.620 ± 1.8
    Insertion Loss (dB)≤2.50≤1.80≤1.5≤1.2≤01.1≤0.4≤0.22
    Isolation (dB)≥21≥22≥23≥24≥26≥31≥35
    IM3 (dBc @ 2×43dBm)-160
    ApplicationIndoor & Outdoor
    Degree of ProtectionIP65
    Operating Temperature ( ℃ )-40 ~ + 80
    Interface4.3-10 Mini Din Female
    Handling Power (Watt, max)300
    Peak Power (Watt, max)1200
    Dimension (mm)

    127X40X31

    (excludes connectors)

    Net Weight (g)

    550± 5%

    Packing Dimensions (mm)

    190 × 80 × 45

    Packing Carton Size(mm)

    430 × 400 × 105

    ROHS ComplianceYes
