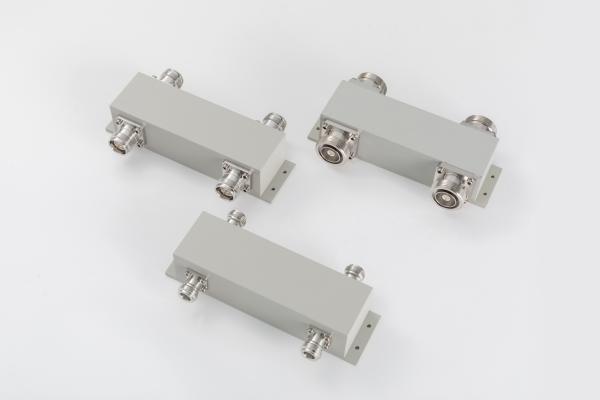

    698-3800MHz 2in 2out Hybrid Coupler / 2:2 Combiner PIM -150 / -160

    Ask Lasest Price
    Brand Name : Vinncom
    Model Number : VN-HC2x2-0738-OX
    Certification : RoHS/ISO9000
    Price : VN-HC2x2-035052-ON-xxx
    Payment Terms : L/C, D/A, D/P, T/T
    • Product Details
    • Company Profile

    698-3800MHz 2in 2out Hybrid Coupler / 2:2 Combiner PIM -150 / -160

    698-3800MHz 2in 2out Hybrid Coupler / 2:2 Combiner PIM -150 / -160


    • High isolation
    • Good PIM up to -160@43dBm*2
    • Good Flatness

    VN-HC2x2-0738-OD-xxx.pdf

    VN-HC2x2-0738-ON-xxx.pdf

    VN-HC2x2-0738-OP-160.pdf

    Part NumberVN-HC2x2-0738-OX
    Operating Frequency ( MHz )698-3800
    Impedance ( Ohm )50
    VSWR≤1.25
    Coupling (dB)3.0±0.9
    Insertion Loss (dB)3.7
    Isolation (dB)≥25
    IM3 (dBc @ 2×43dBm)-150 / -160
    ApplicationIndoor & Outdoor
    Degree of ProtectionIP65
    Operating Temperature ( ℃ )-40 ~ + 80
    InterfaceN Female/4.3-10 Female/DIN Female
    Handling Power (Watt, max)500(N:300)
    Peak Power (Watt, max)1500(N:1200)
    Dimension (mm)(L×W×H, excl connector)141 × 44 × 38170 × 100 × 40170 × 100 × 40
    Net Weight (g)615 ± 20685 ± 20880 ± 20
    Packing Dimensions (mm,L×W×H)170 × 100 × 40170 × 100 × 40170 × 100 × 40
    Packing Carton Size (mm,L×W×H)460 × 350 × 195520 × 360 × 110520 × 360 × 110


    Hybrid couplers are the special case of a four-port directional coupler that is designed for a 3-dB (equal) power split. Hybrids come in two types, 90 degree or quadrature hybrids, and 180 degree hybrids.

    Vinncom has different designs for hybrid coupler based on micro-strip ,air-dielectric and thin film,waveguide etc .

    Hybrid couplers are widely used as a directional 3db coupler with one termination port , also can be used as a combiner of 2 in 2 out and 2 in 1 out .

    For some usage ,hybrid couplers can be combined as matrix, for example 4in 4out ,3in 3out etc.

    Vinncom supply many different frequency range for hybrid coupler and widely used in DAS and testing systems.
