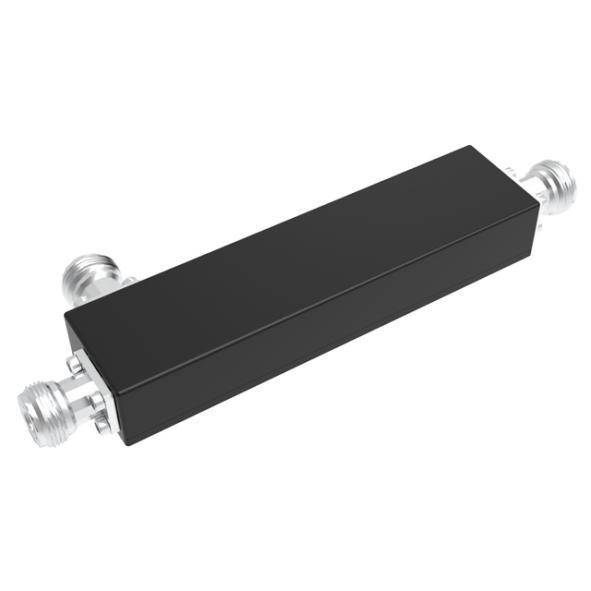

700-3800MHz N Female Directional Coupler

● Low Insertion Loss
● High power handing
● Low PIM Low VSWR

VN-DC-0738-INX-150.pdf

Directional couplers are common microwave/millimeter wave components in microwave measurement and other microwave systems, which can be used for signal isolation, separation and mixing, such as power monitoring, source power stability, signal source isolation, transmission and reflection of sweep frequency test. It is a directional microwave power divider and an indispensable part of modern sweep reflectometer. It usually has waveguide, coaxial line, ribbon line and microstrip.

Product Application

Rf passive components are mainly applied in wireless communication system construction of the base station and indoor distribution system. Especially in the building indoor wireless signal distribution covers the application of a wide range of large Numbers. Rf passive components in the base station construction and indoor distribution project have the effect of rf signal connection or distribution. Indoor distribution system is to launch the base station signal connection or shunt by rf passive components, the cover points through the feeder for the antenna, so as to achieve continuous good indoor wireless signal coverage. Indoor distribution system mainly includes the source and day supply distribution system two parts.

Passive components is the main part of day feed system.

Related Products

698-2700MHz/698-3800MHz IP65 N Female4.3-10 FemaleDIN Female Connector can available.

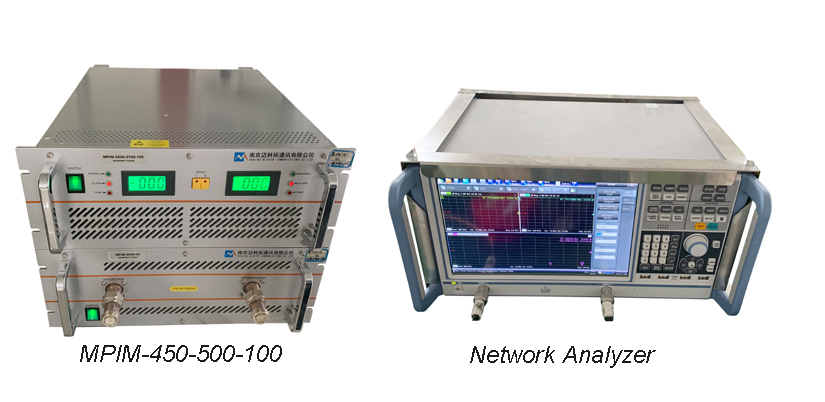

Our Tester

This is our basic test instrument.Following test record.

The performance parameters of RF passive devices mainly include operating band, insertion loss, input-output standing wave, port isolation, in-band fluctuation, out-of-band suppression, intermodulation products and power capacity.Good performance benefits the network.

What we do

Vinncom（Founded in 2006）is a leading manufacturer specializing in the microwave and RF field, integrating design, R&D, production, sales,  and service.

Established in 2006 and located in Hefei, China, the company has an R&D and manufacturing center spanning over 16,000 square meters (with an actual construction area of 35,000 square meters).

Our products include power dividers, couplers, bridges, dummy loads, low PIM termination loads, attenuators, combiners, antennas, connector adapters, cables and jumpers, circulator isolators. Based on our seasoned R&D and production system, we provide customized solutions, high-quality products, and professional technical services to meet the application needs of DAS, navigation, telecommunication systems, sensor systems, optical fibers, and more.

Adhering to the principle of "Quality First; Continuous Innovation" and the tenet of "Customer First, Win-Win Cooperation", we have established enduring and harmonious partnerships with our clients. Our products are popular worldwide and have garnered widespread recognition and trust from our customers.

We eagerly anticipate and welcome both new and existing clients to reach out to us, let's join hands to create a bright future together!
