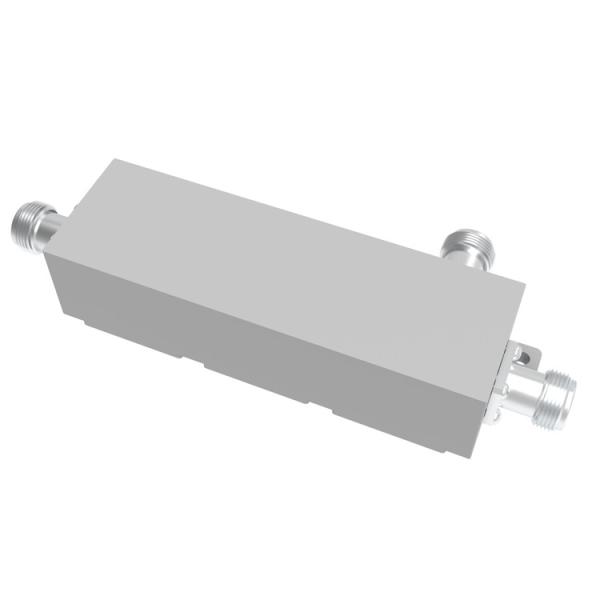

    OEM 5dB wideband Coaxial Directional Coupler 698MHz-6000MHz

    Ask Lasest Price
    Brand Name : Vinncom
    Model Number : VN-DC-0760-ON5
    Certification : RoHS/ISO9000
    Price : negotiation
    Payment Terms : T/T, L/C, D/A, D/P
    Supply Ability : 500pcs per day
    Delivery Time : 2-4weeks
    • Product Details
    • Company Profile

    OEM 5dB wideband Coaxial Directional Coupler 698MHz-6000MHz

    698-6000MHz 5dB N Female RF Directional Coupler


    • Wide band
    • High isolation
    • Portable for installation

    Part Number

    VN-DC-0760-ON5
    Operating Frequency ( MHz )698-6000
    Impedance ( Ohm )50
    VSWR≤1.35
    Coupling (dB)5 ± 1.4
    Insertion Loss (dB)≤2.5
    Isolation (dB)≥21
    IM3 (dBc @ 2×43dBm)-150
    ApplicationIndoor/Outdoor
    Degree of ProtectionIP65
    Operating Temperature ( ℃ )-40 ~ + 80
    InterfaceN Female
    Handling Power (Watt, max)300
    Peak Power (Watt, max)1200
    Dimension (mm)(L×W×H, excl connector)127× 40× 31
    Net Weight (g)450± 5%
    Packing Dimensions (mm,L×W×H)180 × 75 × 30
    Packing Carton Size (mm,L×W×H)400 × 380 × 170
    ROHS ComplianceYes
