    698-2700MHz 2in2out 4.3-10F Hybrid Coupler

    Ask Lasest Price
    Brand Name : vinncom
    Model Number : VN-HC2X2-0727-OP
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 800pcs per day
    Certification : ROHS ISO9000
    • Product Details
    • Company Profile

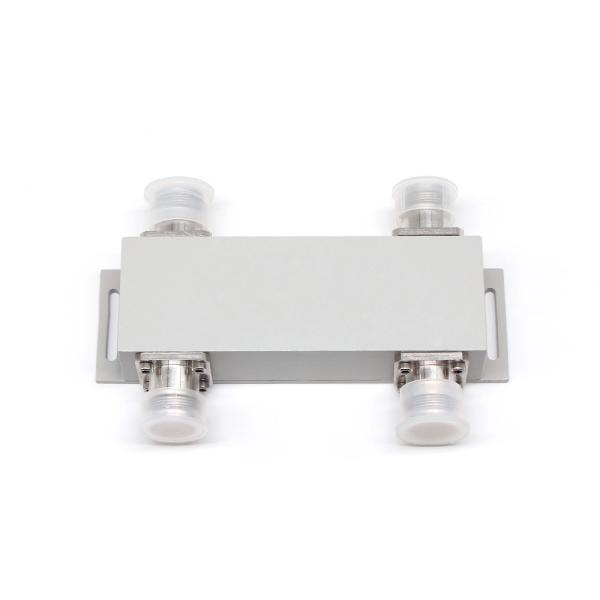

    698-2700MHz 2in2out 4.3-10F Hybrid Coupler

    698-2700MHz 2in2out 4.3-10F Hybrid Coupler

    • Good PIM up to -160@43dBm*2
    • Good VSWR at all ports
    • Less Insertion Loss

    VN-HC2x2-0727-OP-xxx.pdf

    Part NumberVN-HC2x2-0727-OP
    Operating Frequency ( MHz )698-2700
    Impedance ( Ohm )50
    VSWR≤1.20
    Coupling (dB)3.0±0.8
    Insertion Loss (dB)3.6
    Isolation (dB)≥25
    IM3 (dBc @ 2×43dBm)-140 / -150 / -155 / -160
    ApplicationIndoor & Outdoor
    Degree of ProtectionIP65
    Operating Temperature ( ℃ )-40 ~ + 80
    Interface4.3-10 Female
    Handling Power (Watt, max)500
    Peak Power (Watt, max)1500
    Dimension (mm)(L×W×H, excl connector)127 × 44 × 31
    Net Weight (g)565 ± 20
    Packing Dimensions (mm,L×W×H)170 × 100 × 40
    Packing Carton Size (mm,L×W×H)520 × 360 × 110
    ROHS ComplianceYes
