    380-6000MHz 2in 2out 4.3-10 Female Hybrid Coupler Low PIM -160dBC

    Ask Lasest Price
    Brand Name : Vinncom
    Model Number : VN-HC2x2-03860-OP
    Certification : ROHS ISO9000
    Price : Negotiable
    Payment Terms : D/A, L/C, D/P, T/T
    Supply Ability : 60pcs per day
    • Product Details
    • Company Profile

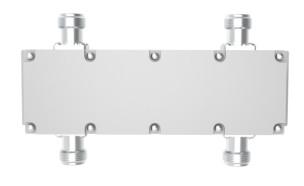

    380-6000MHz 2in 2out 4.3-10 Female Hybrid Coupler Low PIM -160dBC

    380-6000MHz 2in 2out 4.3-10 Female Hybrid Coupler Low PIM -160dBC


    • Good VSWR at all ports
    • Portable for installation
    • Low PIM -165dBc@43dBm*2

    Hybrid couplers are the special case of a four-port directional coupler that is designed for

    a 3-dB (equal) power split. Hybrids come in two types, 90 degree or quadrature hybrids,

    and 180 degree hybrids.


    Part NumberVN-HC2x2-03860-OP-xxx
    Operating Frequency ( MHz )380-6000
    Impedance ( Ohm )50
    VSWR1.35
    Coupling (dB)3
    Insertion Loss (dB)±2
    Isolation (dB)20
    IM3 (dBc @ 2×43dBm)@xxx-150/-160/-163/-165
    ApplicationIndoor & Outdoor
    Degree of ProtectionIP65
    Operating Temperature ( ℃ )-40 ~ + 80
    Interface4.3-10 Female
    Handling Power (Watt, max)200
    Peak Power (Watt, max)1200
    Dimension (mm)(L×W×H, excl connector)176.5X46X42
    Net Weight (g)865
    ROHS ComplianceYes
    Packing Dimensions (mm,L×W×H)250X105X50
    Packing Carton Size (mm,L×W×H)565X260X120

    380-6000MHz 2in 2out 4.3-10 Female Hybrid Coupler Low PIM -160dBC380-6000MHz 2in 2out 4.3-10 Female Hybrid Coupler Low PIM -160dBC
