    600-4200MHz 2in 2out N Female Hybrid Coupler For Connections

    Ask Lasest Price
    Brand Name : Vinncom
    Model Number : VN-HC2x2-0642-ON-xxx
    Certification : ISO 9000 ROHS
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    • Product Details
    • Company Profile

    600-4200MHz 2in 2out N Female Hybrid Coupler For Connections

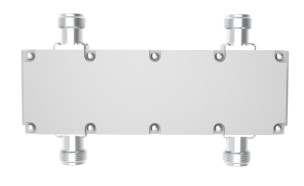

    600-4200MHz 2in 2out N Female Hybrid Coupler


    • High isolation
    • Portable for installation
    • Low PIM -165dBc@43dBm*2

    VN-HC2x2-0642-ON-xxx.pdf

    Part NumberVN-HC2x2-0642-ON-xxx
    Operating Frequency ( MHz )600-4200
    Impedance ( Ohm )50
    VSWR1.25
    Coupling (dB)3
    Insertion Loss (dB)±1
    Isolation (dB)24
    IM3 (dBc @ 2×43dBm)@-150/-153/-163/-165
    ApplicationIndoor & Outdoor
    Degree of ProtectionIP65
    Operating Temperature ( ℃ )-40 ~ + 80
    InterfaceN Female
    Handling Power (Watt, max)300
    Peak Power (Watt, max)1200
    Dimension (mm)(L×W×H, excl connector)155.6*44*38
    Packing Dimensions (mm,L×W×H)170*100*40
    Packing Carton Size (mm,L×W×H)520*360*105
    ROHS ComplianceYes

    600-4200MHz 2in 2out N Female Hybrid Coupler For Connections600-4200MHz 2in 2out N Female Hybrid Coupler For Connections
