600-4200MHz DIN Female Power Splitter

• Less Insertion Loss
• Good VSWR at all ports
• Wide band frequency

VN-PS-0642-ODx-S-xxx.pdf

Part Number	VN-PS-0642-ODx-S-xxx
Operating Frequency ( MHz )	600-4200
Impedance ( Ohm )	50
Power Partition Coefficient@ODx	2-way	3-way		4-way
VSWR	≤1.25	≤1.25		≤1.25
Split Loss (dB)	≤3.3	≤5.4		≤6.5
IM3 (dBc @ 2×43dBm)@xxx	-140 / -150 / -155/ -160/-165
Application	Indoor & Outdoor
Degree of Protection	IP65
Operating Temperature ( ℃ )	-40 ~ + 80
Interface	DIN Female
Handling Power (Watt, max)	500
Peak Power (Watt, max)	1500

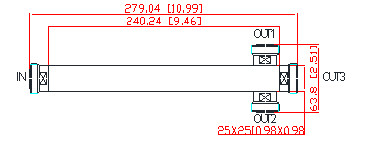

Dimension (mm)(L×W×H, excl connector)	213.5×25×25		240.24×25×25		269.54×25×25
Packing Dimensions (mm,L×W×H)	260×80×40		320× 80 ×60		320 × 80 × 60
Packing Carton Size (mm,L×W×H)	540×420×140		655× 420× 140		655× 420×140
ROHS Compliance	Yes
