    Connector 4.3-10M For 1/2 Feeder Cable

    Ask Lasest Price
    Brand Name : Vinncom
    Model Number : VN-CON-4310M-12FC
    Certification : RoHS/ISO9000
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50pcs per day
    Delivery Time : depends on your quantity
    • Product Details
    • Company Profile

    Connector 4.3-10M For 1/2 Feeder Cable

    Connector 4.3-10M For 1/2 Feeder Cable


    • Wide band DC-4GHz
    • Good VSWR
    • Low PIM

    SPECIFICATION

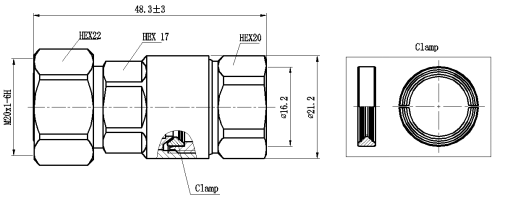

    Dimensions are in millimeters
    Interface
    According toIEC 61169-54
    Electrical
    Characteristic Impedance50 ohm
    Frequency RangeDC-4GHz
    VSWR

    ≤1.10

    PIM3≤-160dBc
    Insertion Loss0.05*√fdB
    Dielectric Withstanding Voltage≥2500V RMS,50Hz,at sea level
    Dielectric Resistance≥5000MΩ
    Contact ResistanceCenter Contact ≤1.0mΩ
    Outer Contact ≤1.0mΩ
    Mechanical
    DurabilityMating cycles ≥100 cycles
    Material and plating
    Materialplating
    BodyBrassTri-Alloy
    InsulatorPTFE-

    Center conductor

    Other

    Phosphor bronze

    Brass

    Ag

    Ni

    Environmental
    Temperature Range-40℃~+85℃
    WatertightnessIP67
    Rosh-complianceFull ROHS compliance
    Salt-fog test96h
